RUNLIN Cold Shrink Cable Indoor / Outdoor Terminations suitable for voltage 0.6/1kv,3.6/6kv, 6/6KV, 6/10kv, 8.7/10kv, 8.7/15kv .
It mainly divided into the single core, two-core, three-core, four-core, five-cove, which is widely used in the terminals processing and middle connection of low-voltage electric cable. Cold Shrinkable cable accessories adopt the most advanced technology of cold shrinkable, dispense with using fire or others special tools. Only need to draw out the wires, when you prepare for installation, and the elastomer will rapidly shrink and appress to the installation position.
It suit for crosslinking rubber power cable connection, sealing, insulation, electric stress relief， especially suitable for oil refinery, chemical, mining and other flammable and explosive place.
Applications
Used widely, high prominent anti-fouling, anti-aging, hydrophobicity and heat-resisting, cold-resisting performance.
Especially suitable for areas of high altitudes, cold, wet, umidity, salt spray and heavy pollution.
Popular for oil field, chemical industry, diggings, tunnel and others various inflammable and explosive locations.
Manufacturing equipment advanced, automaticity high dependable performance.
Features
Offer real advantages over other cable sealing methods:
• Reliable seal against water.
• Tough, resilient rubber holds pressure seal, even after exposure.
• Broad application range; can lower inventory costs.
• Eliminates need for heat source or special tools.
• Reduces installation time for sealing jobs.
• Easily removed for inspections or disconnects.
• Resistant to fungus, ozone, alkalies and acids.
• Constant radial pressure helps connectors stay together in wind and vibration.

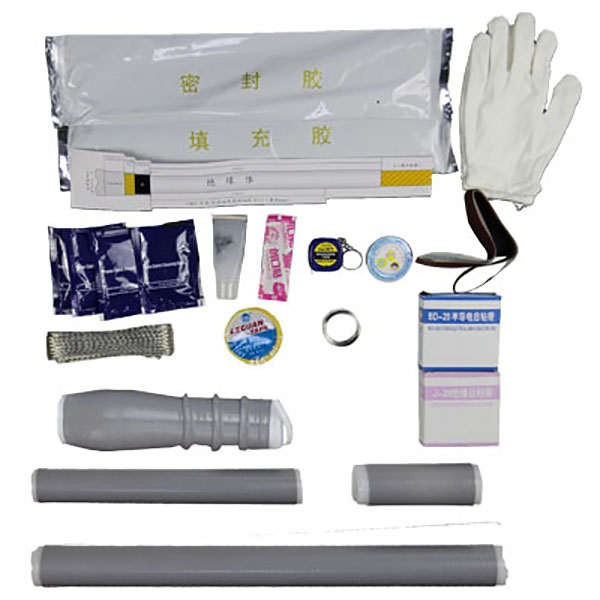

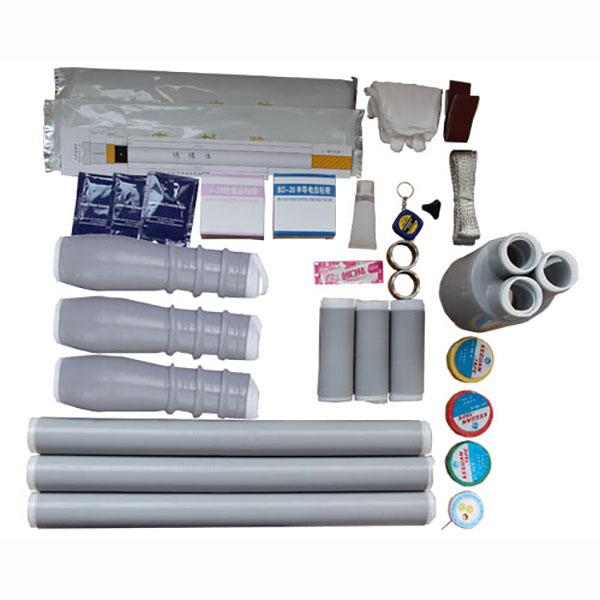

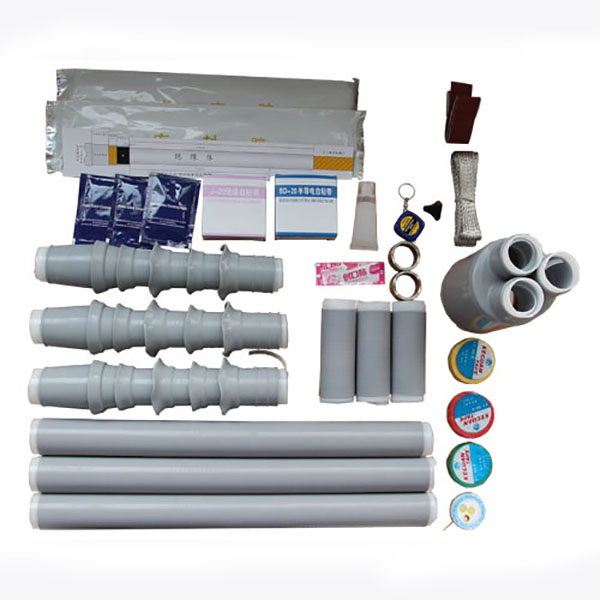

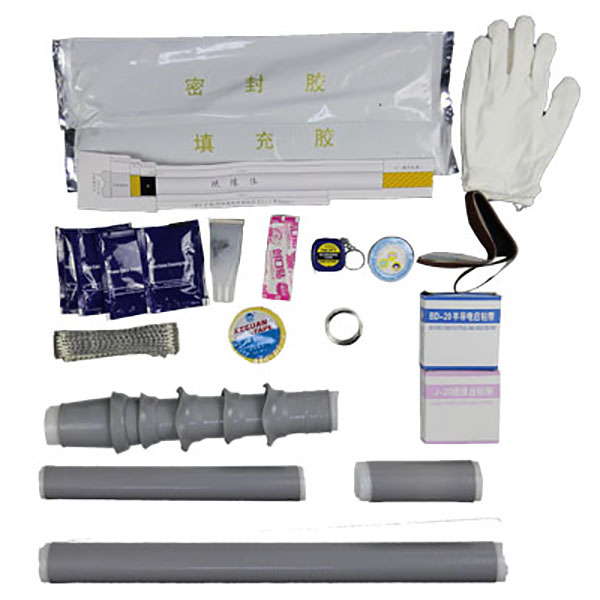

Accessories:
| Cold shrink termination | Semi-conductive Tape | PVC Tap | Cable holder |
| Cold shrink tubing | Filling adhesive | Measuring tape | Ribbon gauze |
| Weave ground wire | Constant force | Gloves | Paper card |
| Insulation tube | Sealing gum | Clean paper | Installation technology |
| Sealed tube | Thermal grease | Woundplast | Certificate |
Technical Data
|
Physical Property |
Typical Value |
| Color |
Grey |
| Hardness |
40A |
| Tensile strength(Mpa) |
≥7.5 |
| Tear strength(KN/m) |
≥30 |
| Elongation at break(%) |
≥750 |
| Permanent deformation at break(%) |
≤4.0 |
| Dielectric strength(kV/mm) |
20 |
| Volume resistivity(Ω·cm) |
≥1.0×10^15 |
|
Item |
Data |
| Alternating 5min power frequency withstand voltage | 39kv |
| 1min power frequency | 35kv |
| 15min power frequency withstand voltage | 23kv |
| Partial discharge | below 15kv<2pc |
| Dynamic stability (short circuit 1 time ) | No deformation and welding |
| Under High temperature 95-100℃impulse voltage | The positive and negative polarity 10 times under 95 kv |
- Geometrical stress cone structure products, specific creepage distance>31mm/kv;
- Made of silicone rubber, suitable for Grade III&IV contaminative areas;
- Simple and fast installation, no need naked flame, safe and reliable;
- Has lasting radial pressure to the cable itself, keep the same “breathing” with the cable;
- Good seal water proofing, to ensure long-term reliable running.
Product standard: GB/T12706.4-2002 & IEC60502-4
