  • silicone rubber cold shrink tube with mastic

    Short Description:


  • Supply Ability: 800K pcs/ Month
  • Port: Qingdao Port
  • Payment Terms: T/T, L/C and etc
  • Product Detail

    Product Tags

    Description:

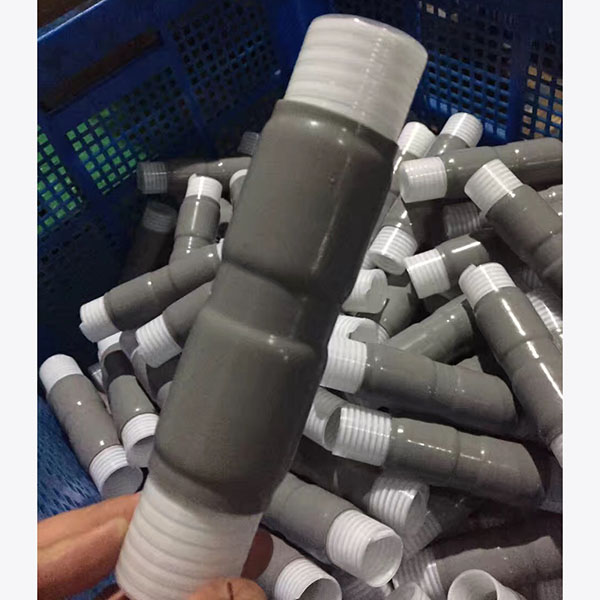

    It is an open-end tubular rubber sleeve, which is pre-expanded and assembled onto a removable core. The core is removed after the tube has been positioned for installation over a cable connection, terminal lug, etc., allowing the tube to shrink and form a waterproof seal. It is made of Silicone rubber material, which have excellent weather resistance, acid and alkali resistance. It is ideal sealing material for the wire and cable connection in telecommunication and power field, and kinds of other types of connections

    Dimensions

    Product Number

    Diameter(mm)

    Cable size (mm)

    Length (mm)

    Tube thickness(mm)

    Color

    Min

    Max

    CSTM-18

    Φ18

    5.7

    13

    50-200

    2.5

    Grey/Black

    CSTM-25

    Φ25

    7.3

    21

    50-300

    2.5

    Grey/Black

    CSTM-28

    Φ28

    9

    23

    50-300

    2.5

    Grey/Black

    CSTM-30

    Φ30

    9.1

    25

    50-400

    2.5

    Grey/Black

    CSTM-35

    Φ35

    10.4

    30.1

    50-400

    2.5

    Grey/Black

    CSTM-40

    Φ40

    11.7

    35.1

    50-400

    3

    Grey/Black

    CSTM-45

    Φ45

    12.7

    40

    50-450

    3

    Grey/Black

    CSTM-50

    Φ50

    16

    45

    50-450

    3

    Grey/Black

    CSTM-55

    Φ55

    18.2

    49.2

    90-800

    3

    Grey/Black

    CSTM-60

    Φ60

    18.2

    53

    90-800

    3

    Grey/Black

    Remark: The diameter, thickness and length can be customized

    Technical Property

    Performance

    Typical Value

    Test Method

    Hardness

    40A

    ASTM D2240

    Tensile Strength

    10.3MPa

    ASTM D 412

    Elongation

    990%

    ASTM D 412

    Tear Strength

    41.6N/mm

    ASTM D 624

    Brittle Temperature

    <–40℃

    ISO 812

    Electric Strength

    23KV/mm

    ASTM D 4325

    Volume Resistivity

    1.3×1017ΩNaN

    ASTM D 4325

    Flame Resistance

    V0

    UL94

    Thermal Ageing

    Pass

    ASTM D 412

    Ozone Ageing

    Pass

    ASTM D 1149

    UV Ageing

    Pass

    ASTM G 154

    Sealing Class

    IP68

    IEC60529-1989/2015

    Operation Temperature

    -55 to +200℃
