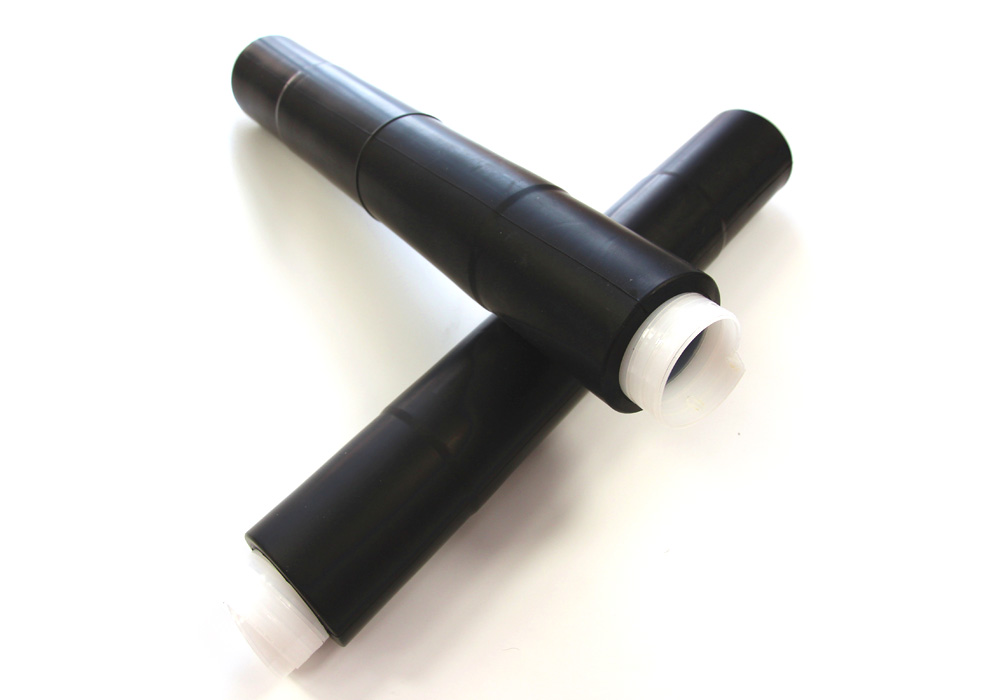

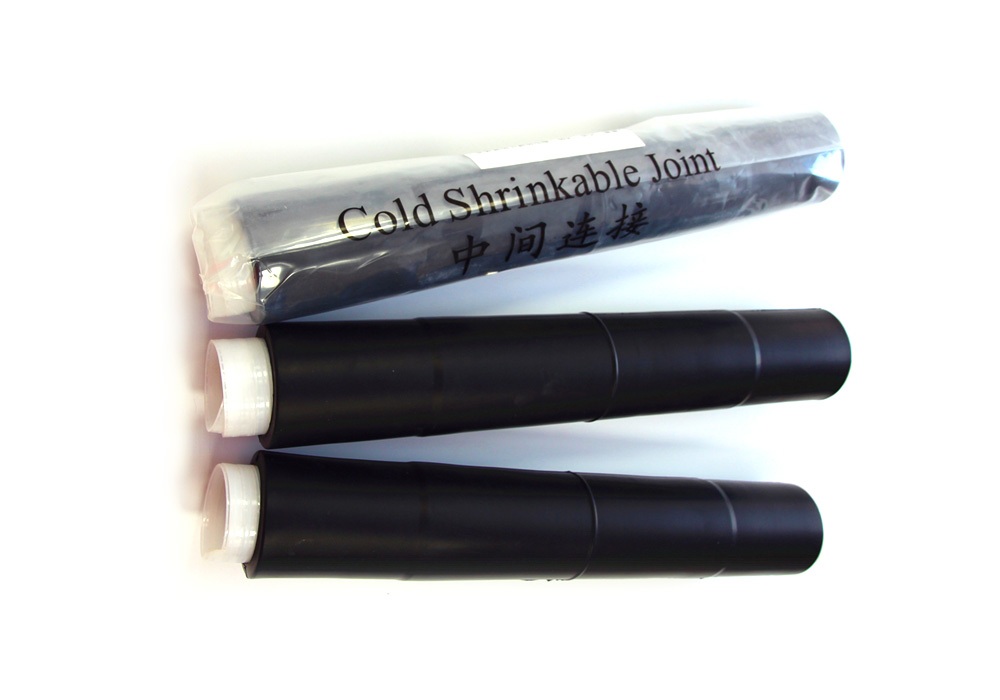

10kV Cold Shrink Cable Joints

Suitable for voltage 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV three-core cross-linked cable connecting, plays the roll of sealing and insulating, especially in the flammable and explosive places.

Product Details

Suitable for voltage 3.6/6kV, 6/6kV, 6/10kV, 8.7/10kV, 8.7/15kV three-core cross-linked cable

connecting, plays the roll of sealing and insulating, especially in the flammable and explosive

places.

Voltage Class	Model	Cross-Section/mm²
10kV, Joint, 3-core	RL-LS10kVJ-3-1	25-50
	RL-LS10kVJ-3-2	70-120
	RL-LS10kVJ-3-3	150-240
	RL-LS10kVJ-3-4	300-400

Technical Data

Item	Requirements
AC voltage test(39kV, 5min)	No breakdown
Partial discharge(15kV)	≤10
Impulse voltage test(95 ~ 100℃. 95kV, 10impulses of each polarity)	No breakdown
Combined cycling test with AC voltage(30 cycles in water and 30 cycles in air)	22kV

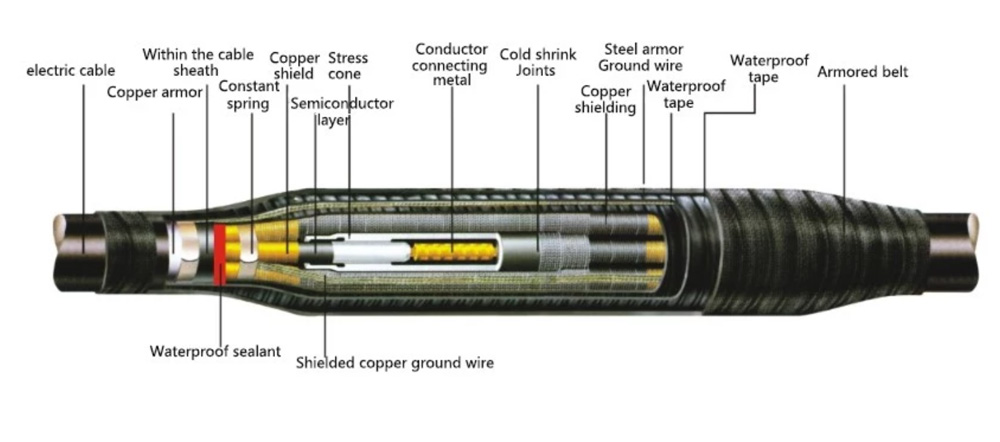

joint产品剖面图
