1kV Cold Shrink Cable Indoor/Outdoor Termination

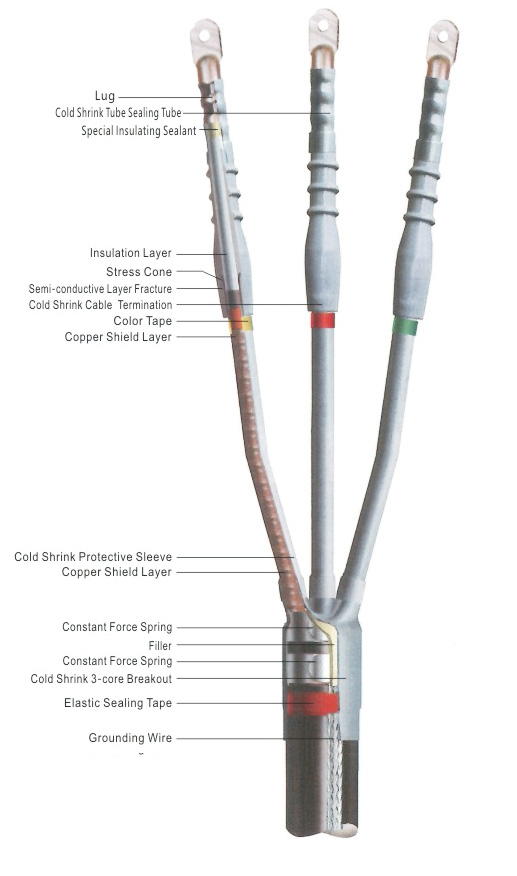

Cold Shrink Indoor Termination is a type of power equipment accessories used forcable connection and protection in indoor environments, it is made of high-performancesilicone rubber, which can shrink automatically without heating, providing insulation andsealing protection for 10kV-35kV cables. Available in single-core and three-core types.

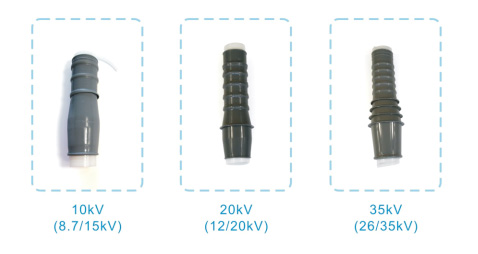

Product Model
| 产品/Product | 型号/Model | 横截面积/Cross-Section/mm² |
| 10kV三芯户内终端 10kV Indoor Termination, 3-core | RJLN-8.7/15kV 3-1 | 25-50 |
| RJLN-8.7/15kV 3-2 | 70-120 | |
| RJLN-8.7/15kV 3-3 | 150-240 | |
| RJLN-8.7/15kV 3-4 | 300-400 | |
| 20kV三芯户内终端 20kV Indoor Termination, 3-core | RJLN-12/20kV 3-1 | 50-95 |
| RJLN-12/20kV 3-2 | 120-185 | |
| RJLN-12/20kV 3-3 | 240-400 | |
| 35kV三芯户内终端 35kV Indoor Termination, 3-core | RJLN-26/35kV 3-1 | 50-95 |
| RJLN-26/35kV 3-2 | 120-185 | |
| RJLN-26/35kV 3-3 | 240-400 |
Eelectrical Parameter
| 检测项目/Test Item | 标准要求及检测结果/Standard and Test Result | ||
| 10kV(8.7/15kV) | 20kV(12/20kV) | 35kV(26/35kV) | |
| 工频电压试验 Power Frequency Voltage Test | 39kV | 54kV | 117kV |
| 5分钟未击穿、未闪络 5min,no breakdown no flashover | |||
| 局部放电试验 Partial Discharge Test | 15kV | 20kV | 45kV |
| 无可检测放电 no detectable discharge | |||
| 冲击电压试验 Impulse Voltage Test | 95kV | 125kV | 200kV |
| 正负极性各10次，未击穿、未闪络 on positive and negative poles each 10times, no breakdown no flashover | |||
| 恒压负荷循环试验 Constant Pressure Load Cycle Test | 22kV | 30kV | 65kV |
| 导体加热至95℃-100℃，30/60次空气中循环，未击穿、未闪络 heat the conductor to 95℃-100℃,30/60 cycles in the air, no breakdown no flashover | |||
| 潮湿试验 Humidity Test | 11kV,300h | 15kV,300h | 32.5kV,300h |
| 未击穿、未闪络，无电蚀，无显著损伤 no breakdown no flashover, no electric corrosion,no significant damage | |||
